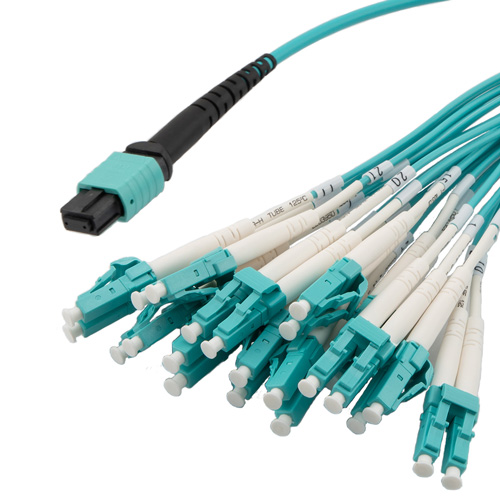

MPO w/o pins to LC fan-out, 2.0mm diameter, 24 fiber, OM4 50/125um Multimode, OFNR Jacket, Aqua, 3 meter

Grade - Cable type	Standard Base-12 Multimode
Mode - Fiber Diameter	Multimode - 50/125
Connector 1	MPO (w/o pins) UPC
Connector 2	LC PC
IP Rating	Non-Rated
Jacket Burn Rating	LSZH

The PolyPhaser MPF24M4-20LCR are multi-fiber ribbon cables rated for OM4 40GB Multimode applications. They offer up to 24 times the density when compared to the same size SC connector and utilize a push-pull design for easy mating and removal. The PolyPhaser MPF24M4-20LCR MPO w/ pins to LC Fan-out cable assemblies are factory terminated and tested and provide significant installation time savings. The PolyPhaser MPF24M4-20LCR MPO to LC fan-out is ideal for making connections within rack or wall mounted fiber enclosures. PolyPhaser's MPO products are fully compatible with US Conec MTP products.
