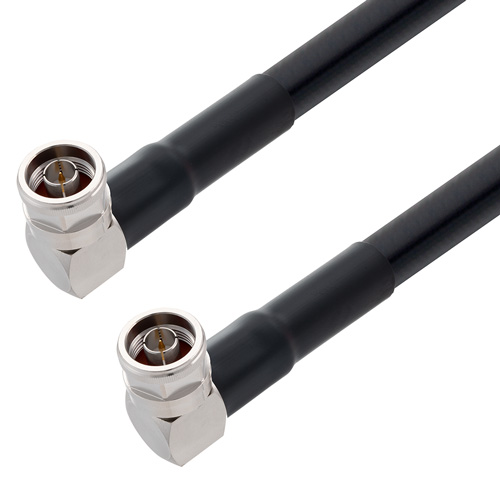

PolyPhaser CA600LL049-50FT is a 50 foot Type N to Type N M Right Angle/M Right Angle 600 Series Low Loss Cable Jumper is built using high quality components by skilled technicians to ensure a reliable product. The Type N Male Right Angle cable jumper connections are designed to industry standard interface dimensions to ensure superior performance. This product is in stock and available for same day shipping. The use of a right angle interface helps when attaching the cable assembly in tight spaces and can reduce strain on the cable/connector interface. This high-quality RF coaxial assembly is perfect in many RF Interconnect applications such as industrial / commercial, laboratory test and measurement, military / defense, and many other RF systems. The CA600LL049-50FT Type N to Type N cable assembly is the perfect companion to PolyPhaser line of RF surge protection devices particularly when used as an antenna jumper cable.
The 600 Series coax used in these Type N to Type N assemblies is a 0.59 inch diameter coax with a black PE jacket. This cable's foam PE dielectric is low loss material with a phase velocity of 87% reducing the attenuation when compared to solid dielectric coax cables. PolyPhaser Low Loss 600 Series coax has a solid center conductor and uses a double shield comprised of a wire braid over a foil tape construction providing >90% shielding effectivity. The construction and materials of the CA600LL049-50FT result in a coax cable assembly with 1.5 inch one time bend radius and a repeat bend radius of 6 inches. The cable assembly's combination of Type N to Type N Male Right Angle/Male Right Angle and 600 Series Low Loss Cable supports a maximum operating frequency of 5.8 GHz. You can find detailed performance specifications in the product datasheet. Processes and procedures are in place to ensure products meet the published specifications.
For additional strength, these Type N Male Right Angle to Type N Male Right Angle cable assemblies have polyolefin heat shrink strain relief boots on both ends of the RF Cable Assembly Jumpers. The heat shrink booting uses a double walled epoxy filled material to prolong the life of the assembly.
