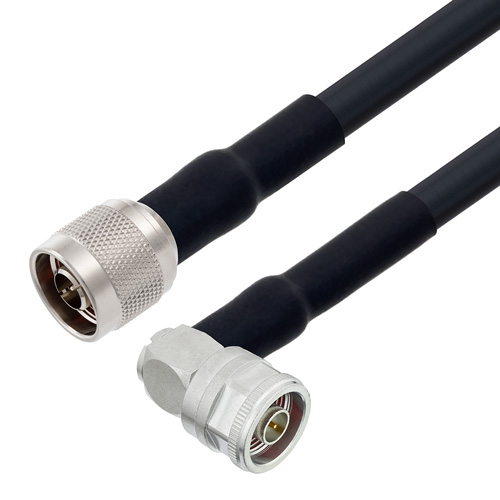

25 FT Type N to Type N M/M Right Angle 400 Series Low Loss Cable Jumper

PolyPhaser CA400LL004-25FT is a 25 foot Type N to Type N M/M Right Angle 400 Series Low Loss Cable Jumper is built using high quality components by skilled technicians to ensure a reliable product. The Type N Male and Type N Male Right Angle cable jumper connections are designed to industry standard interface dimensions to ensure superior performance. All of these products are available for same day shipment to fulfill your urgent needs. The use of a right angle interface helps when attaching the cable assembly in tight spaces and can reduce strain on the cable/connector interface. This high-quality RF coaxial assembly is perfect in many RF Interconnect applications such as Wireless Lan, LMR, cellular, and many other applications. The CA400LL004-25FT Type N to Type N cable assembly is the perfect companion to PolyPhaser line of RF surge protection devices particularly when used as an antenna jumper cable.

The 400 Series coax used in these Type N to Type N assemblies is a 0.4" diameter coax with a black Polyethylene jacket. This cable's foam Polyethylene dielectric is low loss material with a VoP of 85% reducing the attenuation when compared to solid dielectric coax cables. PolyPhaser Low Loss 400 Series coax has a solid center conductor and uses a double shield comprised of a wire braid over a foil tape construction providing shielding >90%. The construction and materials of the CA400LL004-25FT result in a coax cable assembly with a one inch one time bend radius and a repeat bend radius of four inches. The cable assembly's combination of Type N to Type N (M)/(MRA) and 400 Series Low Loss Cable supports a maximum operating frequency of 5.8 GHz. Detailed specifications for this configuration includes layout drawings and key performance specifications. This product is built and tested by our expert technicians to fulfill your cable assembly needs.

Polyolefin heat shrink strain relief boots add additional strength on both ends of this 25 foot assembly. This epoxy filled heat shrink will extend the life of these assemblies by distributing the stresses applied to the connector/coax attachment.

Features

Applications
