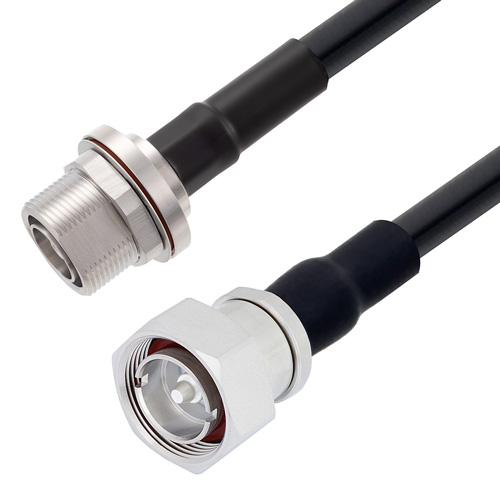

PolyPhaser CA600LL052-1M is a 1 meter 7/16 to 7/16 M/F Bulkhead 600 Series Low Loss Cable Jumper is built using high quality components by skilled technicians to ensure a reliable product. The 7/16 M and 7/16 FBH cable jumper connections are designed to industry standard interface dimensions to ensure superior performance. This product is in stock and available for same day shipping. FBH interfaces allow cables to be attached to a bracket to fix the cable and reduce unwanted movement. In addition, FBH connectors are often used as an input/output to a piece of equipment or enclosure. This high-quality RF coaxial assembly is perfect in many RF Interconnect applications such as Land Mobile Radio (LMR), telecom, IoT network, and many other applications. The CA600LL052-1M 7/16 to 7/16 cable assembly is the perfect companion to PolyPhaser line of RF surge protection devices particularly when used as an antenna jumper cable.
The 600 Series coax used in these 7/16 to 7/16 assemblies is a 0.59 inch diameter coax with a black PE jacket. This cable's foam PE dielectric is low loss material with a VoP of 87% reducing the attenuation when compared to solid dielectric coax cables. PolyPhaser Low Loss 600 Series coax has a solid center conductor and uses a double shield consisting of a wire braid over a foil tape construction providing >90% shielding effectivity. The construction and materials of the CA600LL052-1M result in a coax cable assembly with 1.5 inch one time bend radius and a repeat bend radius of 6 inches. The cable assembly's combination of 7/16 to 7/16 M/FBH and 600 Series Low Loss Cable supports a maximum operating frequency of 5800 MHz. Detailed specifications for this configuration includes layout drawings and performance and material specifications. All assemblies are design verified and shipped with a certificate of compliance.
Polyolefin heat shrink strain relief boots add additional strength on both ends of this 1 meter assembly. These epoxy filled heat shrinks provide strain relief to help prevent damage from over-bending the assembly ends.
